SKU: ResiPUFF 1050
ResiPUFF 1050

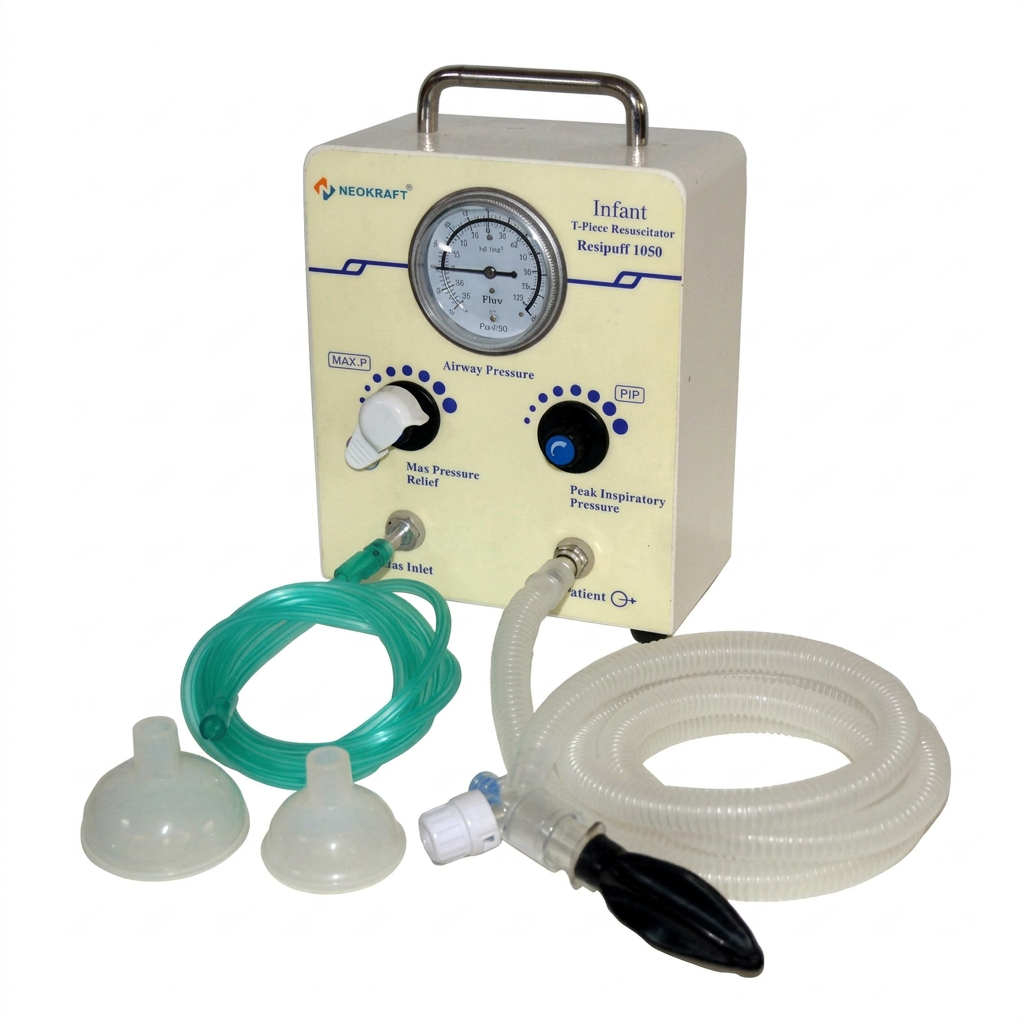

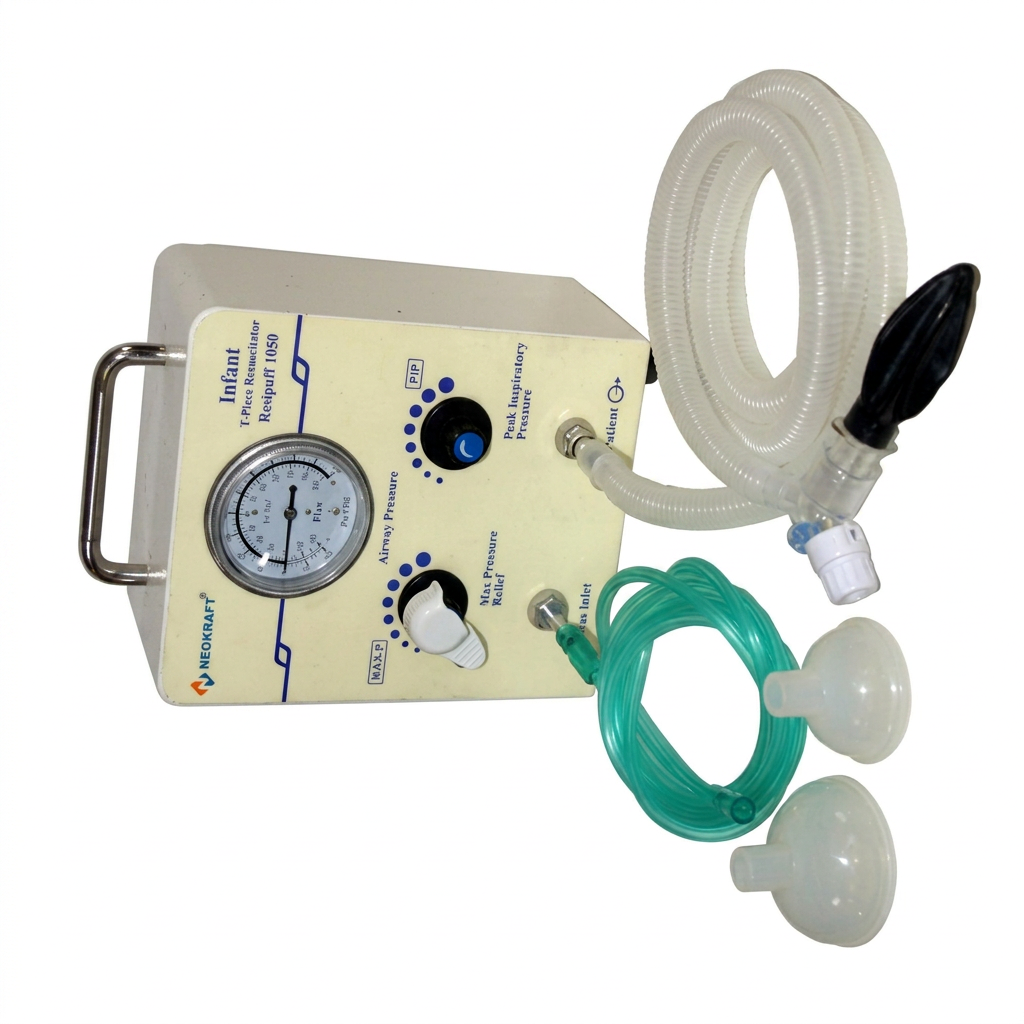

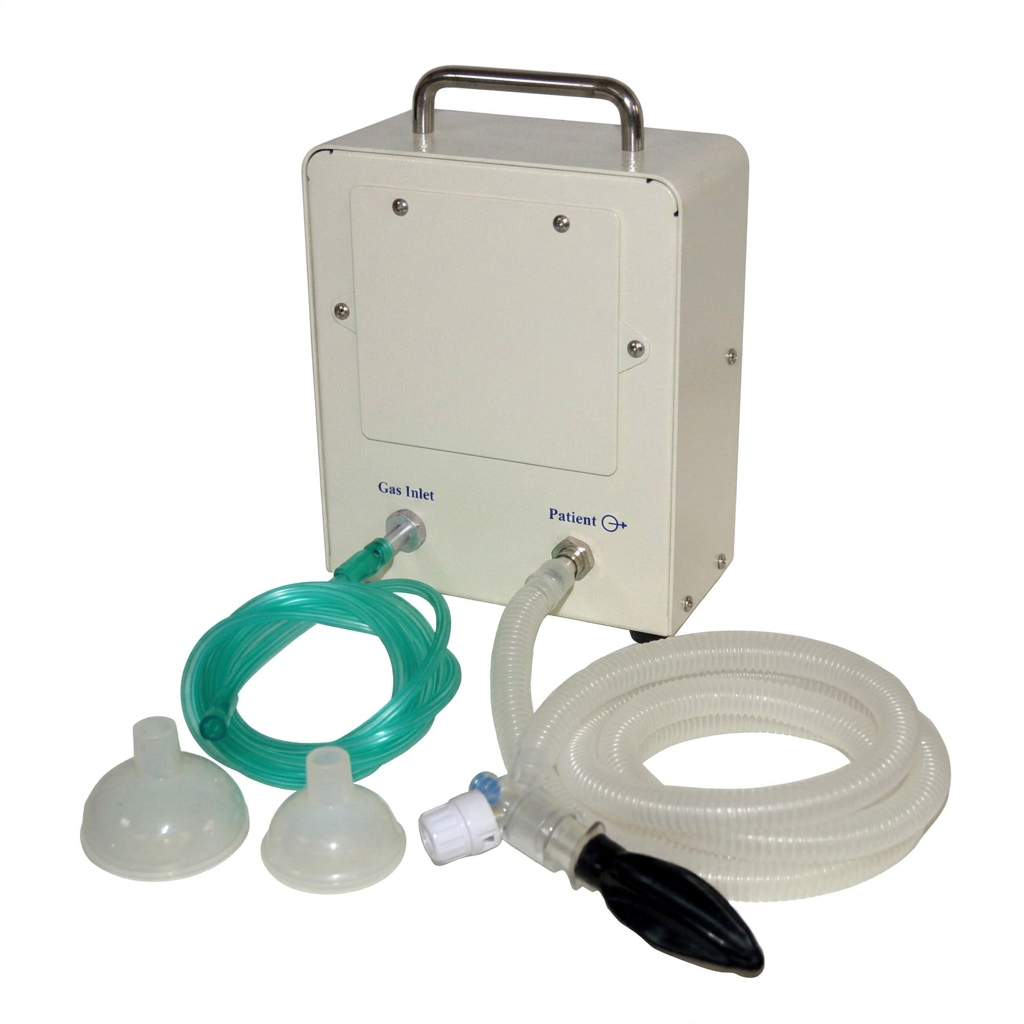

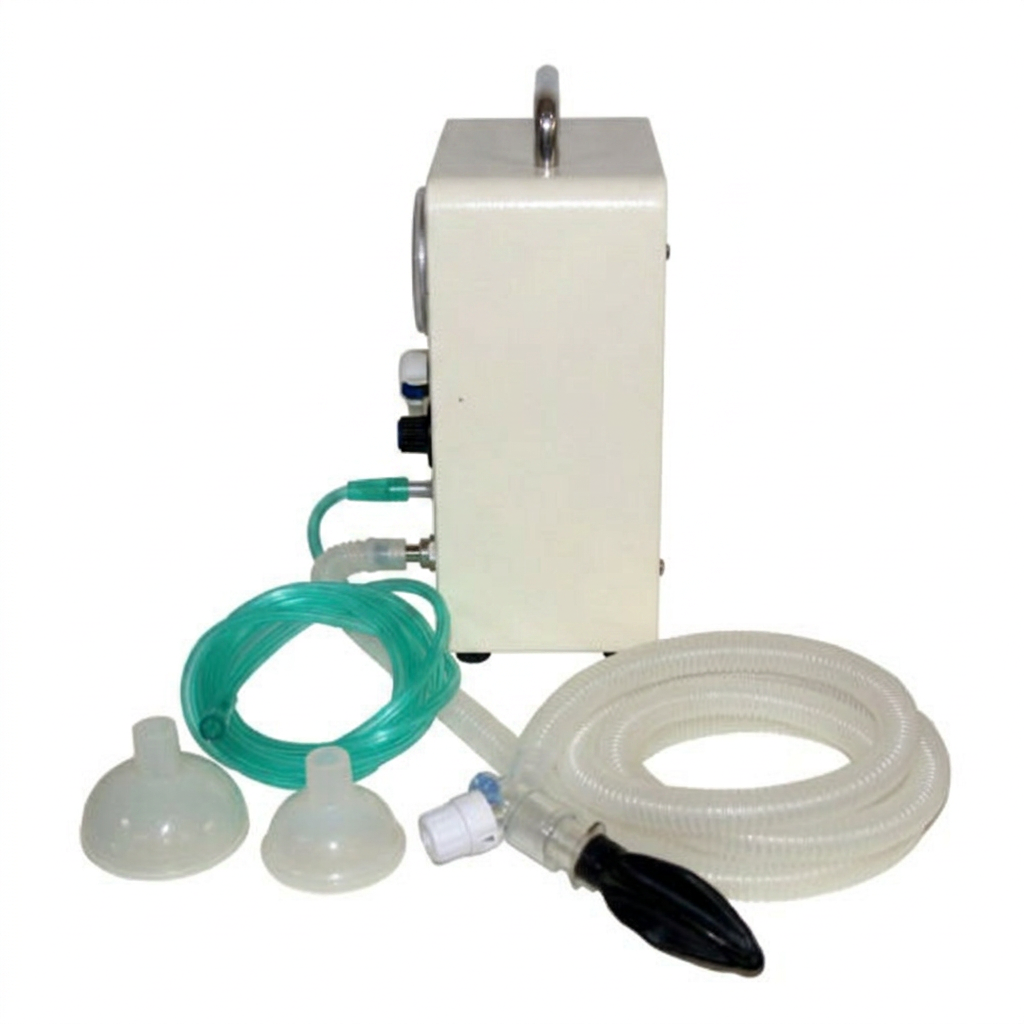

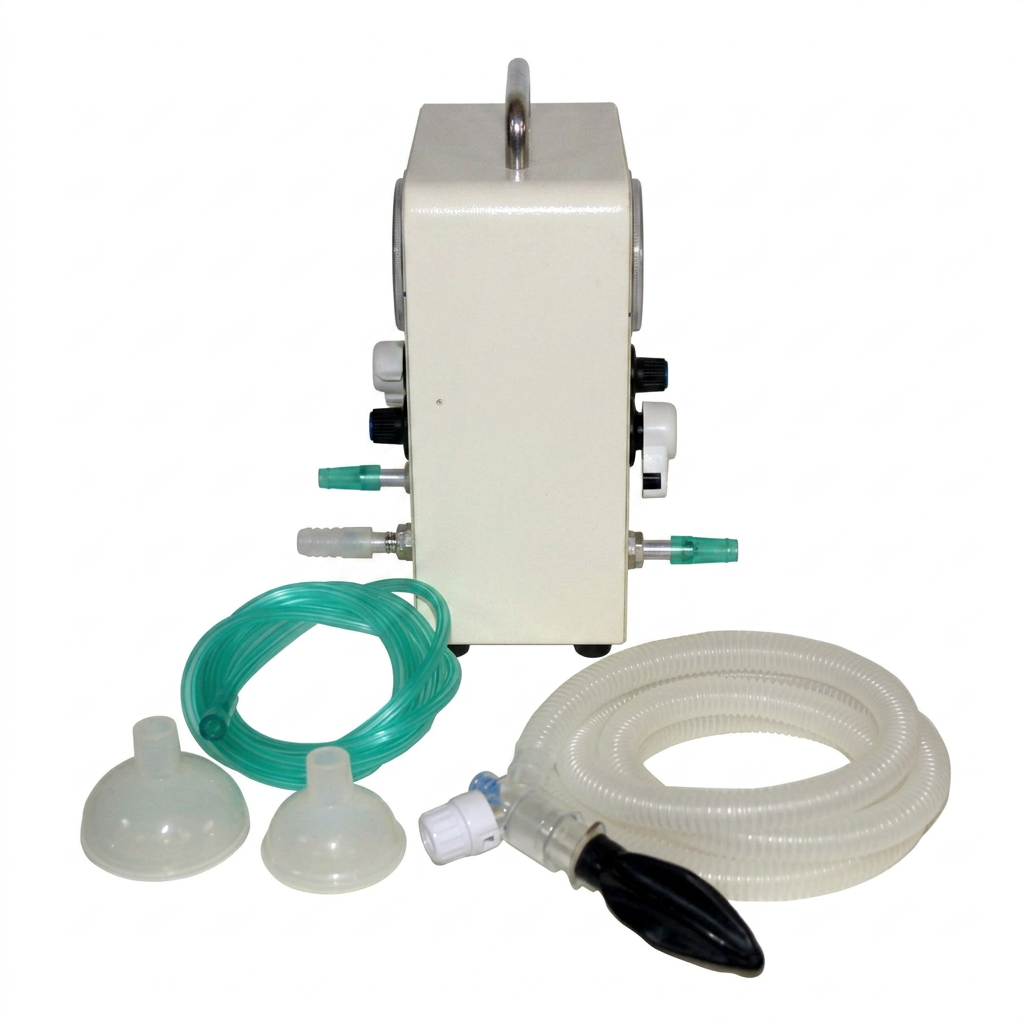

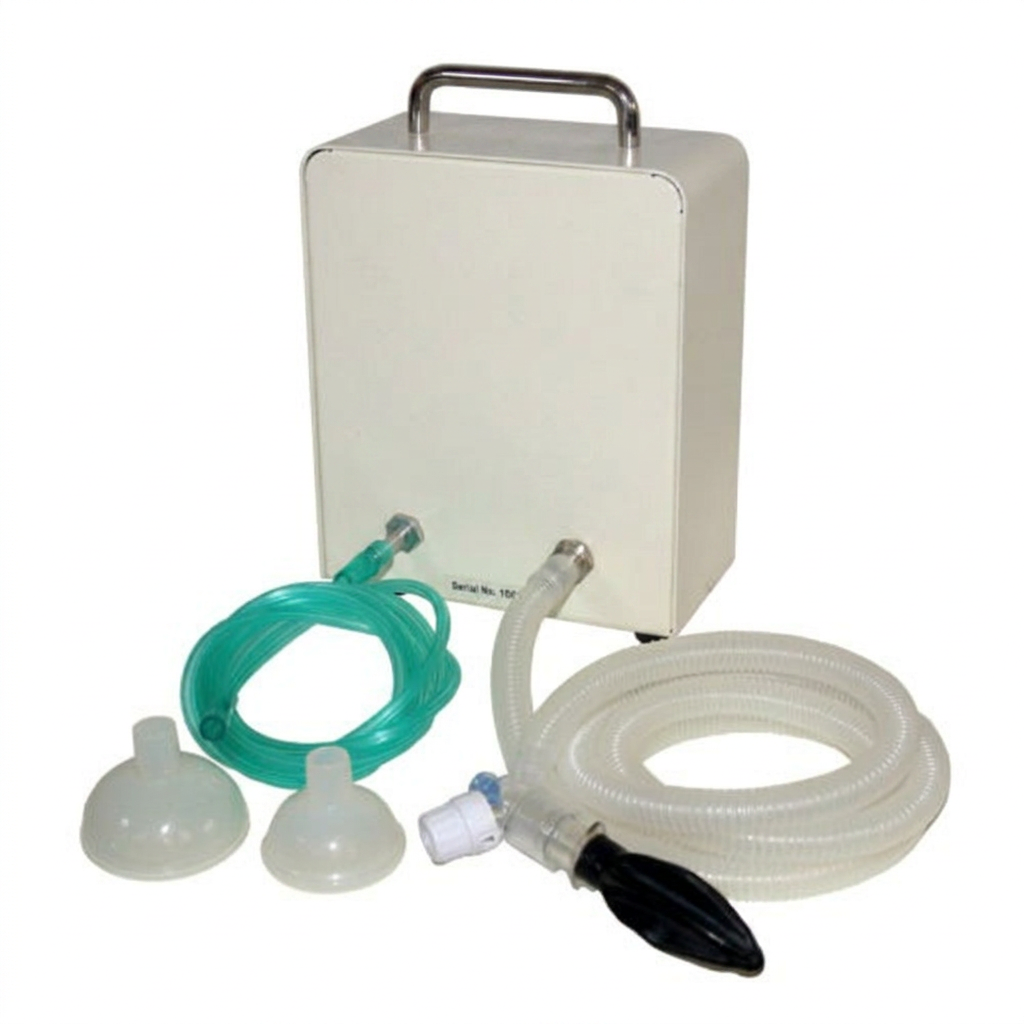

Neokraft Infant T-Piece Resuscitator — lightweight standalone unit suitable for delivery wards, neonatal care units, operating rooms and infant transport. Safely inflates the baby's lungs with consistent PIP & PEEP, avoiding under/over inflation. Connects directly to neonatal masks or endotracheal tubes; no battery or power required.
About the ResiPUFF 1050
Neokraft Infant T-Piece Resuscitator — lightweight standalone unit suitable for delivery wards, neonatal care units, operating rooms and infant transport. Safely inflates the baby's lungs with consistent PIP & PEEP, avoiding under/over inflation. Connects directly to neonatal masks or endotracheal tubes; no battery or power required.
Key capabilities
MAX Pressure
MAX pressure relief valve to set maximum cut-off pressure — pressure will never be delivered beyond the set value.
PIP — Peak Inspiratory Pressure
Setting range 5–75 cmH₂O. Approx ranges: 5 LPM → 5–70, 8 LPM → 6–75, 10 LPM → 8–75, 15 LPM → 10–75 cmH₂O.
PEEP — Positive End Expiratory Pressure
Setting range 2–25 cmH₂O. Approx ranges: 5 LPM → 2–5, 8 LPM → 4–8, 10 LPM → 4–10, 15 LPM → 6–20 cmH₂O.
Display
Medical-grade needle-type manometer monitoring PIP & PEEP each breath. Display range –20 to 100 cmH₂O, accuracy ± 2.0 %.
Factory Defaults
Maximum pressure setting 40–80 cmH₂O. Factory default 40 cmH₂O @ 6 LPM.
Ready to equip your NICU?
Talk to our team for configuration options, accessories and on-site installation support for the ResiPUFF 1050.
